180m/Min Litho High Speed Laminator Machine

Technical details:

Model		DX-1650
Max. Sheet Size (W*L)		1650*1650mm
Min. Sheet Size (W*L)		450*450mm
Thickness	Top sheet	120~600gsm
	Bottom sheet	0.5-10mm
Laminating Accuracy		±1mm (subject to paper cutting precision)
Max. Mechanical Speed		180 m/min (Subject to board quality and specification)
Power		28kw
Dimension L*W*H		15040x2762x2630mm
Total Weight		8500KG

**Specifications are subject to change without notice

1. Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
2. The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.

Servo-control shaftless Back Feeder

• With servo control, no extra adjustment for different sheet sizes, paper weight ranges from 120 gsm to 600 gsm, easy to operate.
• Unique Over-lapping paper feeding and delivery ensures low gsm paper running smoothly;

Bottom sheet feeding section

• Equipped with two servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.

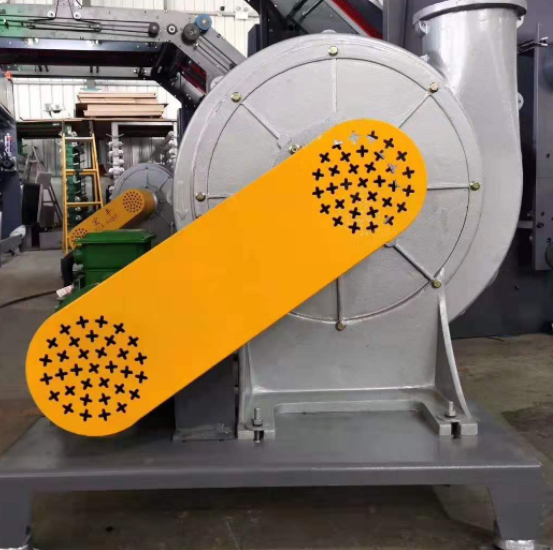

• Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.

Servo motor assembly to ensure accurate and strengthened suction

Gluing section

• High precise coating stainless steel roller mechanism assures even glue applied.
• Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
• Three sensors to control the glue volume level automatically.
• Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

Register section

• Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors adjust the top sheets synchronously to make accurate register during lamination.

Transmission system

Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency

• Main gears for gluing rollers are made from Taiwan company.

Pressing conveyor

• The laminated sheets collected by press conveyor as standard for perfect bonding.
• The conveyor speed is adjustable by one motor as per the machine speed.

Touch Screen(moveable control panel is optional)

• Man-machine interface with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.

Control Panel

Technical details:

Model		DX-1650
Max. Sheet Size (W*L)		1650*1650mm
Min. Sheet Size (W*L)		450*450mm
Thickness	Top sheet	120~600gsm
	Bottom sheet	0.5-10mm
Laminating Accuracy		±1mm (subject to paper cutting precision)
Max. Mechanical Speed		180 m/min (Subject to board quality and specification)
Power		28kw
Dimension L*W*H		15040x2762x2630mm
Total Weight		8500KG

**Specifications are subject to change without notice

1. Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
2. The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.

Servo-control shaftless Back Feeder

• With servo control, no extra adjustment for different sheet sizes, paper weight ranges from 120 gsm to 600 gsm, easy to operate.
• Unique Over-lapping paper feeding and delivery ensures low gsm paper running smoothly;

Bottom sheet feeding section

• Equipped with two servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.
• Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.

Servo motor assembly to ensure accurate and strengthened suction

Gluing section

• High precise coating stainless steel roller mechanism assures even glue applied.
• Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
• Three sensors to control the glue volume level automatically.
• Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

Register section

• Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors adjust the top sheets synchronously to make accurate register during lamination.

Transmission system

Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency

• Main gears for gluing rollers are made from Taiwan company.

Pressing conveyor

• The laminated sheets collected by press conveyor as standard for perfect bonding.
• The conveyor speed is adjustable by one motor as per the machine speed.

Touch Screen(moveable control panel is optional)

• Man-machine interface with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.

Control Panel
